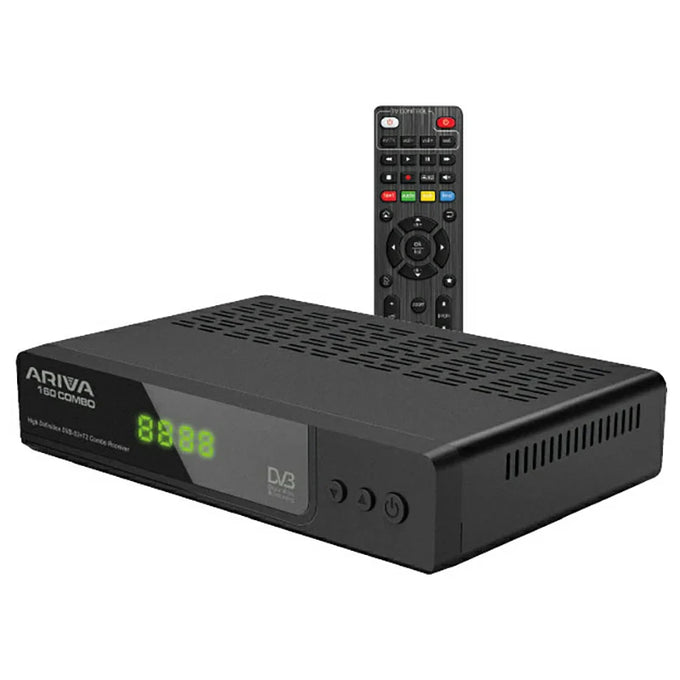

Ferguson Ariva 160 Combo DVB-S2 / DVB-T2 1080P Receiver | STB-ARIVA-160-COMBO

The Ferguson Ariva 160 Combo is a versatile Full HD digital receiver combining satellite DVB-S/S2 and terrestrial DVB-T/T2 reception in one compact unit. It supports modern H.265/HEVC video decoding and provides a wide range of connectivity options, including HDMI, SCART, USB, Ethernet and digital audio.

With built-in PVR and TimeShift functionality, you can record programmes to a USB drive, pause live TV and rewind broadcasts. Its programmable RCU 161 remote control, intuitive menu and 7-day EPG make everyday operation simple.

Key Features

• DVB-S/S2 satellite reception
• DVB-T/T2 terrestrial reception
• Full HD 1080p output
• Supports H.265/HEVC 10-bit
• HDMI 1.4 connection
• SCART connection for older TVs
• USB media playback and recording
• PVR recording to USB storage
• TimeShift – pause and rewind live TV
• Ethernet RJ45 network connection
• Internet radio, WebAPPs and DLNA support
• 7-day electronic programme guide (EPG)
• LCN support
• Teletext and subtitles
• Parental controls
• Up to 2,000 TV and radio channels
• 8 favourite channel groups
• Programmable RCU 161 remote with learning function
• Compact, energy-efficient design

Picture & Sound

The receiver supports Full HD channels and can upscale output to 720p or 1080p. It supports a broad range of video standards, including MPEG-2, H.264 and H.265/HEVC.

A digital coaxial S/PDIF output provides a connection for compatible audio equipment.

Recording & TimeShift

Connect a compatible USB storage device to record your favourite programmes or pause live broadcasts.

Recording and playback functions include:

• Record programmes to USB
• TimeShift
• Pause and resume live TV
• Fast forward and rewind
• Slow motion
• Bookmarks
• Recording preview
• Lock, delete and rename recordings
• Subtitle support during recording

Connectivity

The Ariva 160 Combo is designed to work with both modern and older televisions.

Connections include:

• ANT IN: IEC female connector
• LNB IN: F connector
• HDMI: HDMI 1.4
• SCART: CVBS and Audio L/R
• S/PDIF: Coaxial digital audio
• LAN: RJ45 10/100M Ethernet
• USB: USB media and recording
• Power: DC 12V input

Satellite & Terrestrial Reception

The receiver combines two types of digital TV reception:

• DVB-S/S2 for satellite television
• DVB-T/T2 for terrestrial digital television
• Automatic or manual channel search
• LNB power supply
• Polarisation support
• 22 kHz tone
• Overload protection

Supported Modulations

• 256QAM
• 64QAM
• 16QAM
• QPSK

Multimedia

The USB media player supports common multimedia formats, including:

• MP3
• JPEG
• BMP
• OGG

The receiver also supports MPEG-1/2/4, H.264, VC-1, AVS, VP8 and HEVC/H.265 video formats.

Software Features

• Multilingual on-screen display
• 7-day EPG
• Automatic/manual channel search
• Favourite groups
• Channel move, lock, rename and sorting
• Parental control
• Automatic last-channel memory
• Automatic or manual time settings
• Daylight-saving support
• Timer-based automatic on/off
• DVB subtitles
• Teletext
• USB software updates
• Built-in Tetris, Othello and Sudoku games

Front Panel

• 4-digit green 7-segment display
• Infrared receiver
• Up/down buttons
• Standby button
• Compact 9L enclosure

Technical Specifications

• Brand: Ferguson
• Model: Ariva 160 Combo
• Model Number: STB-ARIVA-160-COMBO
• Reception: DVB-S/S2, DVB-T/T2
• Maximum Output: Full HD 1080p
• Video Codec: H.265/HEVC, H.264, MPEG-2 and others
• HEVC: H.265 10-bit supported
• Channel Capacity: Up to 2,000 TV/radio channels
• Favourite Groups: 8
• EPG: Up to 7 days
• USB: Yes
• PVR: Yes
• TimeShift: Yes
• Ethernet: RJ45 10/100M
• HDMI: HDMI 1.4
• SCART: Yes
• Digital Audio: Coaxial S/PDIF
• LNB Input: F connector
• Antenna Input: IEC connector
• Power Supply: DC 12V
• Remote Control: RCU 161 programmable/learning remote
• Parental Control: Yes
• Teletext: Yes
• Subtitles: Yes
• Software Updates: Via USB
• Compliance: RED 2014/53/EU

Box Contains

• Ferguson Ariva 160 Combo receiver
• RCU 161 remote control
• 2 × AAA batteries
• User manual

Ideal for: households wanting satellite and terrestrial TV reception in one receiver, with Full HD viewing, USB recording, TimeShift and broad connectivity for both modern and older televisions.
